717S01-5-2AF
Series: Heavy duty Tiny Housed
Type: stud
The Quarter-Turn part 717S01-5-2AF is an old Part number for Anemo. We strongly recommend to switch to the alternative stock available:

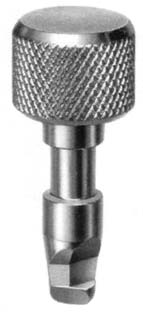

HPTTLK-5Z.jpg "image of 717S01-5-2AF turnlock part")
.jpg "turnlock 717S01-5-2AF technical drawing")
Studlength of 717S01-5-2AF :
5
Headstyle of 717S01-5-2AF :
Knurled head
717S01-5-2AF's material grade :
Steel / zinc-plated, yellow chromate
Tensile strength of 717S01-5-2AF :
3000 N
Maximum working load:
2500 N
Part 717S01-5-2AF maximum working temperature
-40 up to 100 °C
