Heavy Duty Turnlocks

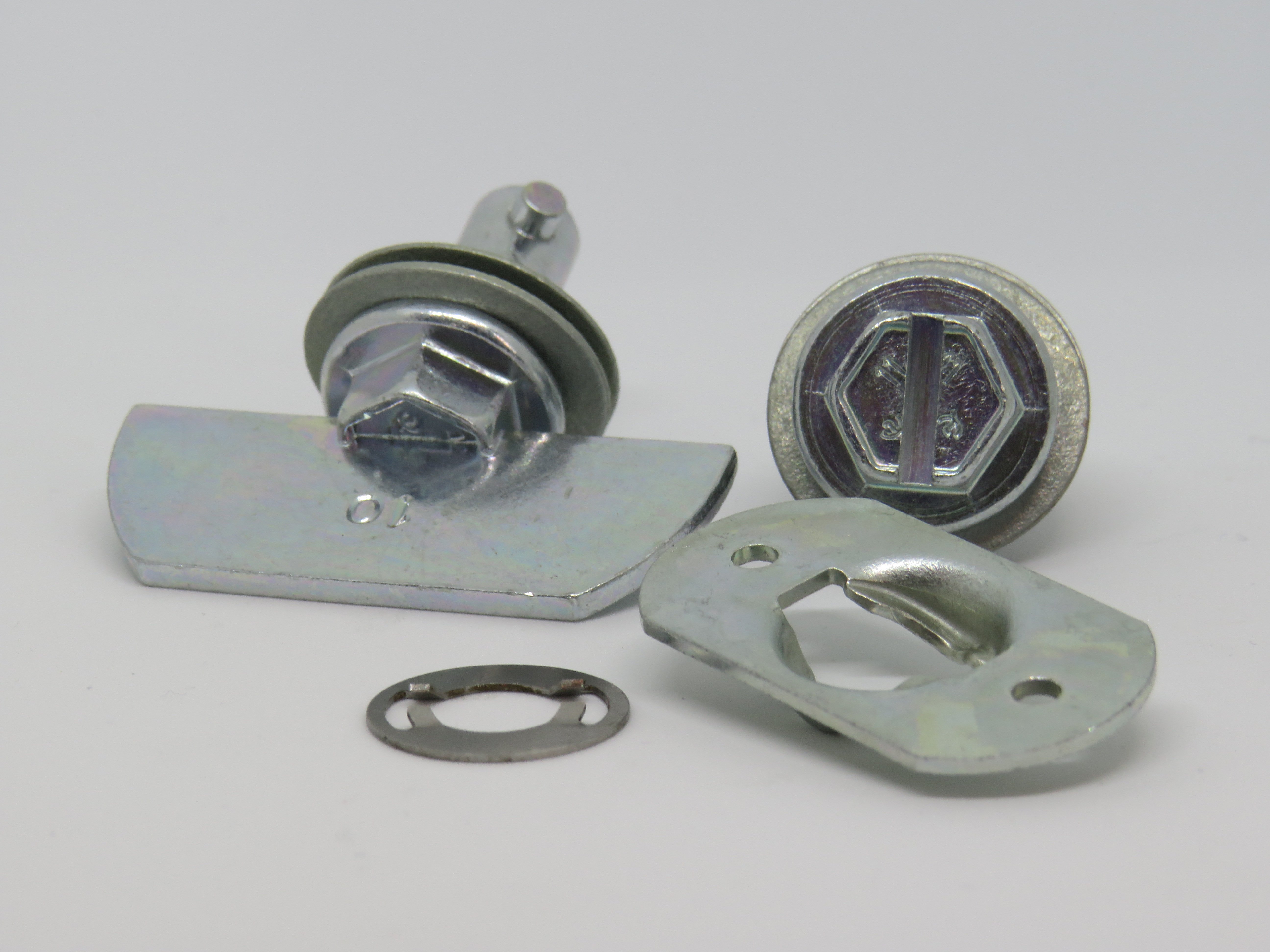

HHS

Heavy Duty High Strength

The heavy duty High Strength series is the strongest of the Turnlock series.

It can withstand tensile strength up to a maximum of 10.000Newton and has a workload of 7.000Newton

Due to these high values, this series is commonly used on commercial vehicles, coaches, chemical machinery, agricultural machinery.

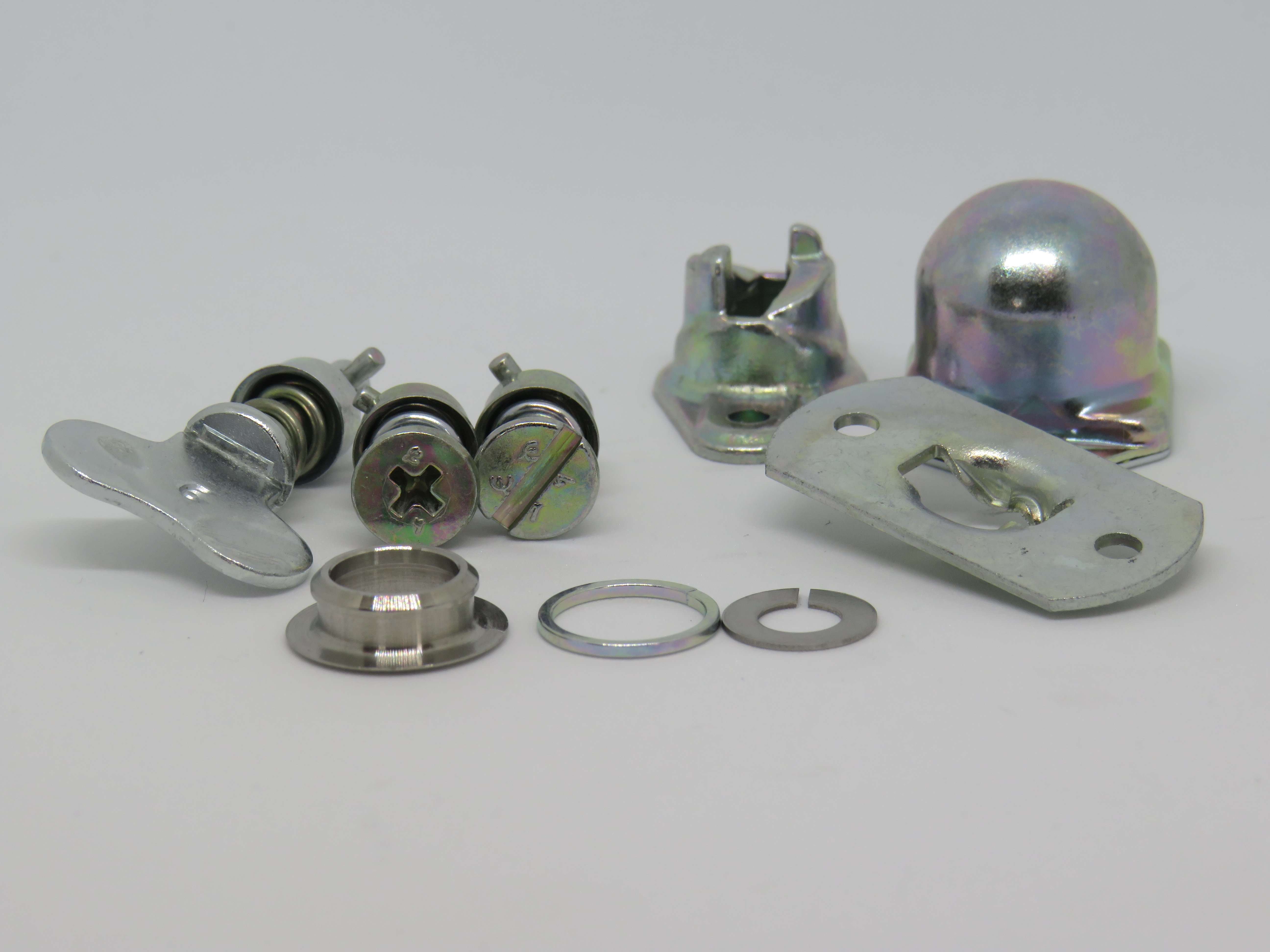

HGR

Heavy Duty Grommet Retained

The Heavy duty Grommet Retained series is a strong turnlock solution.

It offers a small fastener with a high tensile load.

That way it makes it very useful on racing vehicles.

This series also has floating receptacles to allow some deflection space for assembly.

HPT

Heavy Duty Push Turn

The heavy duty Push Turn series is the strongest of the Turnlock Push Turn series.

It can withstand tensile strength up to a maximum of 3.000 Newton and has a workload of 2.500Newton

Due to these high values, this series has a robust design - high strenght.

Turnlock to open  - closed by a push of the finger.

HSTH

Heavy Duty Shear Strength Tiny Housed

It has a maximum tensile strength of 6000 Newton and a maximum Shear strength of 7500 Newton.

These are designed for high performance and are used in the aerospace industry since Turnlock products usually only have a maximum tensile strength and no shear strength.

Exceptionally high cycle life and suitable for curved panel applications.



HEHS

Heavy Duty Extra High strength Extended Grip

It has a maximum tensile strength of 44000 Newton and a maximum Shear strength of 25000 Newton.
