MTH

Medium duty Tiny Housed

The Medium duty Tiny Housed series offer a high tensile load despite their small size.

There are different head styles and receptacles available.

They are usually used to assemble aircraft seats.

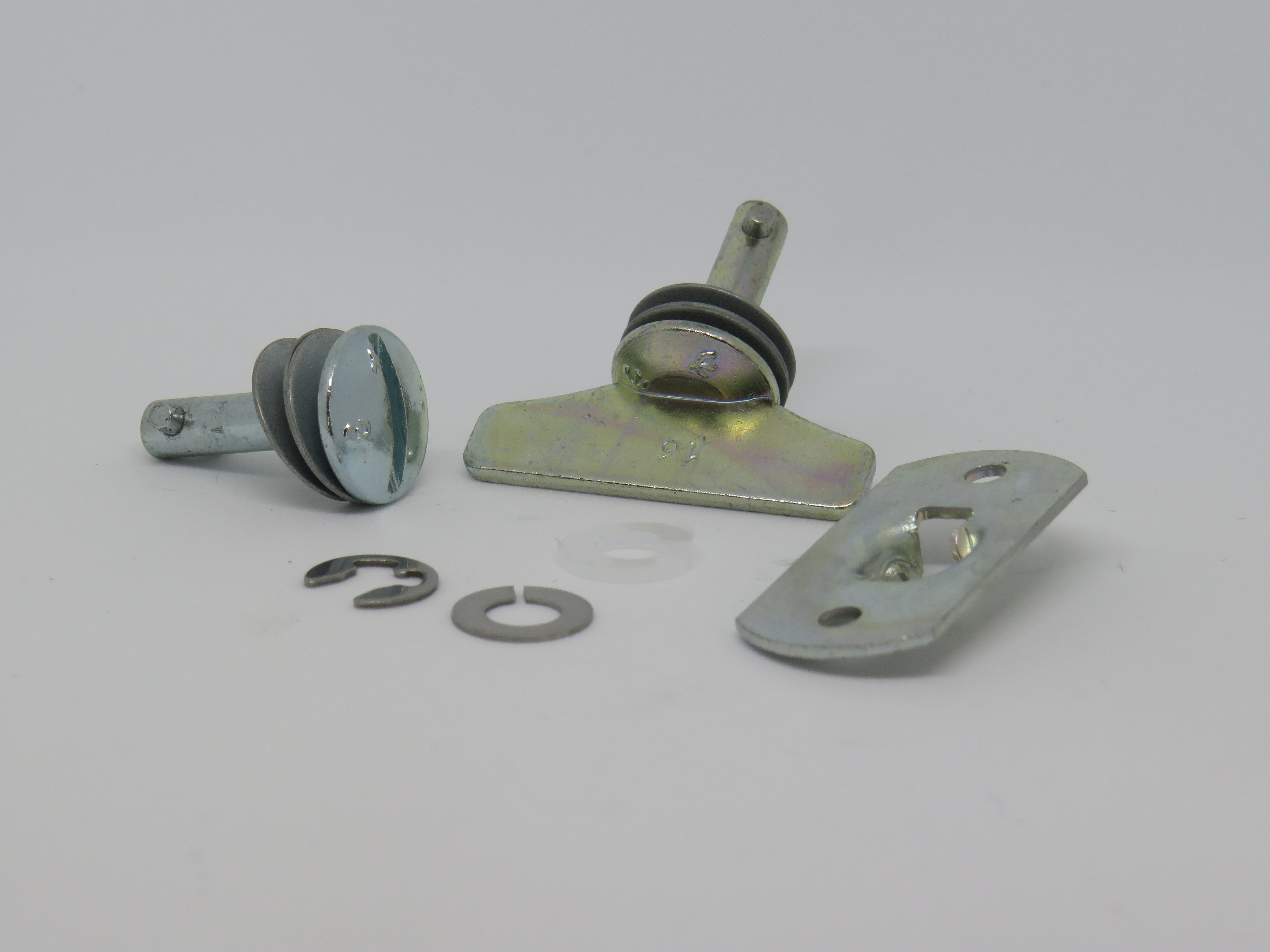

MHS

Medium duty High Strength

The Medium duty High Strength series is the strongest turnlock series in the medium duty range.

It has a very high preload with all flat receptacles that are mounted with rivets, srews or are welded on.

Several heads are available (wing, slotted, cross,...)

MPP

Medium duty Push Push

The Medium duty Push Push series offers the same strength capacity of the MTH series, but has a different functionality.

This Turnlock solution opens and closes by simply pushing the stud head.

The receptacle can be easily installed with a retaining nut, or threaded directly in a blind hole due to the outer thread of M12x1.0

MPT

Medium duty Push Turn

The medium duty Push Turn series is the medium of the Turnlock Push Turn series.

It can withstand tensile strength up to a maximum of 1.400 Newton and has a workload of 1.200Newton

Turnlock to open - closed by a push of the finger.

MPTEG

Medium duty Push Turn Extended Grip

The medium duty Push Turn extended grip series is the medium of the Turnlock Push Turn series.

It can withstand tensile strength up to a maximum of 1.200 Newton and has a workload of 800Newton

Turnlock to open - closed by a push of the finger.

This series has a wide grip range with tool or hand operated.

MSHF

Medium duty Spinning Head Fastened

The medium duty spinning head fastened series is a medium Turnlock

It is low cost to install with the single-hole mounting.

Clockwise locking is standard and the Counterclockwise is special that can be made upon request.

This series has a variable grip range from 1,0 mm to 18,8mm.

MWNF

Medium duty Wire Nut Fastened

The medium duty wire nut fastened series is a medium Turnlock

it is easy to install with the single-hole mounting.

This series has a wide grip range (total thickness G up to 15 mm)
