LMHTLS-1N
Series: Light duty Miniature Housed
This Turnlock part LMHTLS-1N is a light duty stud. We recommend the use of the following Turnlock retaining washers:
LMHWPZ LMHWSS

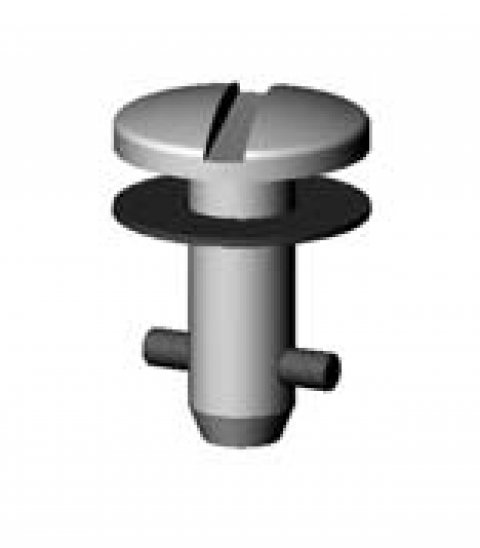

.jpg "image of LMHTLS-1N turnlock")
.jpg "turnlock LMHTLS-1N technical drawing")
Material of LMHTLS-1N :
Steel / nickel-plated with plastic washer (PA6)
Type of LMHTLS-1N :
Stud
Headstyle of LMHTLS-1N :
Slotted recess head
Max.Tensile Strength :
670 N
Max. Working Load :
Max. Working Temperature :
100 °C
Panel Thickness Range :
Frame Thickness Range :
Material Grade of Cup :
TurnLock can offer you the part LMHTLS-1N with Certificate of Quality, Certificate of Conformity and Certificate of Origin on request.
TurnLock is offering part LMHTLS-1N as factory new.
